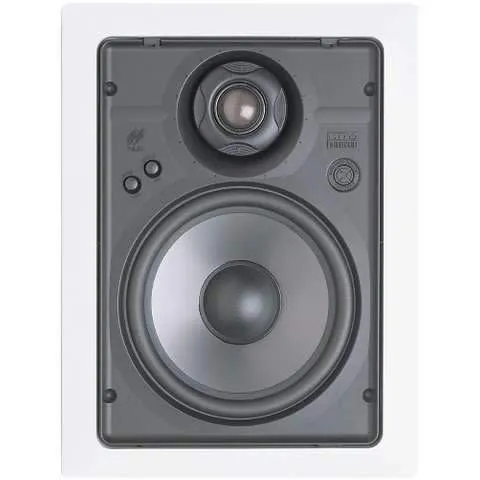

Name: Niles HD6R In-Wall High Definition Loudspeaker 6 1/2in. 2-Way (Includes Bracket)
SKU: 514362

High BL magnet structure with vented pole piece
- Custom perforated speaker baskets protect woofer from construction debris
- Molded ABS baffle with anti-resonant wave bracing
- BumpBack(TM) magnet for increased throw
- Front-mounted bass and treble controls
- Moisture-resistant construction
- IR sensor knockout
- Snap-in baffle assembly
- Two-piece, no strip speaker terminal
- Depth behind wall: 3-5/8 inches deep (assumes ½ inch drywall)
Frame/Grille
- 100% aluminum grilles will not rust
- Color-matched frame/grille
- Microperf grill hides speaker components from view
- Frame mates with bracket to securely clamp sheetrock
Bracket
- Includes Quicksnap new construction wings
- Scored wings for flexible placement between studs
- Extra thin wings minimize sheetrock bulge
- Four wire ties prevent losing wires in walls

General Information
Manufacturer	Niles Audio Corporation
Manufacturer Part Number	FG00884
Brand Name	Niles
Product Model	HD6R
Product Name	6 1/2" 2-Way High Definition Technology In-wall Loudspeaker
Packaged Quantity	1
Package Type	OEM
Product Type	Speaker
Technical Information
Crossover Type	2-way
RMS Output Power	125 W
Driver Type	1" Teteron Tweeter 6.50" Injection Molded Polypropylene (IMPP) Woofer
Minimum Frequency Response	50 Hz
Maximum Frequency Response	21 kHz
Impedance	8 Ohm
Sensitivity	89 dB
Physical Characteristics
Color	White
Form Factor	In-wall
Height	11.7"
Width	8.8"
Depth	3.6"
Miscellaneous
Package Contents	6 1/2" 2-Way High Definition Technology In-wall Loudspeaker Bracket Kit
Warranty
Limited Warranty	5 Year
