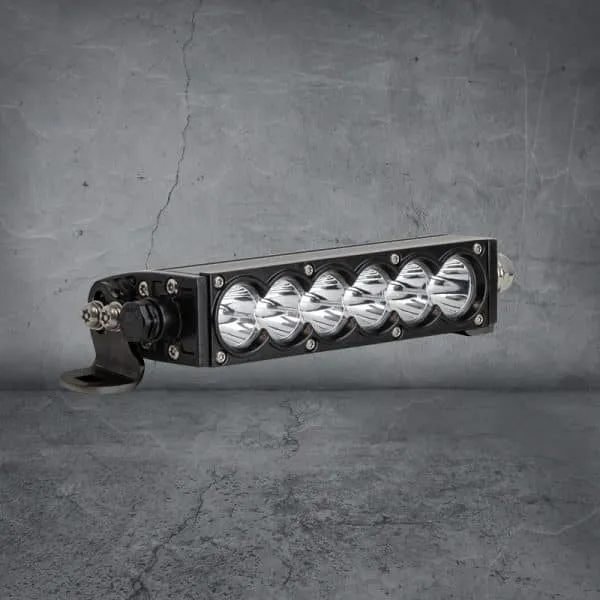

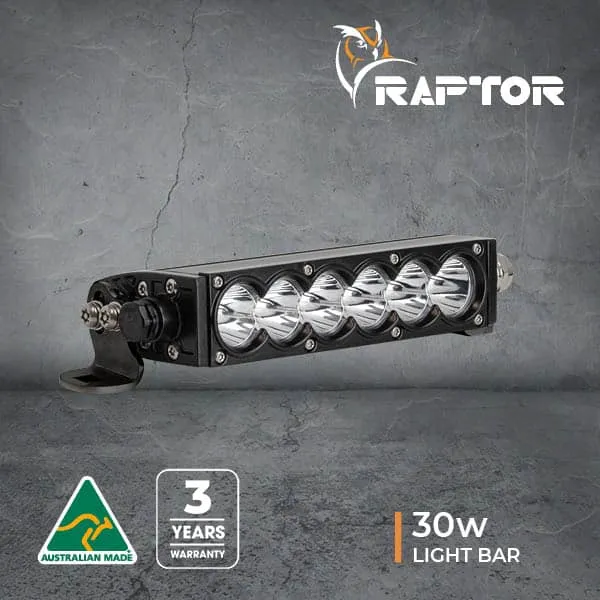

8.5-inch LED Light Bar

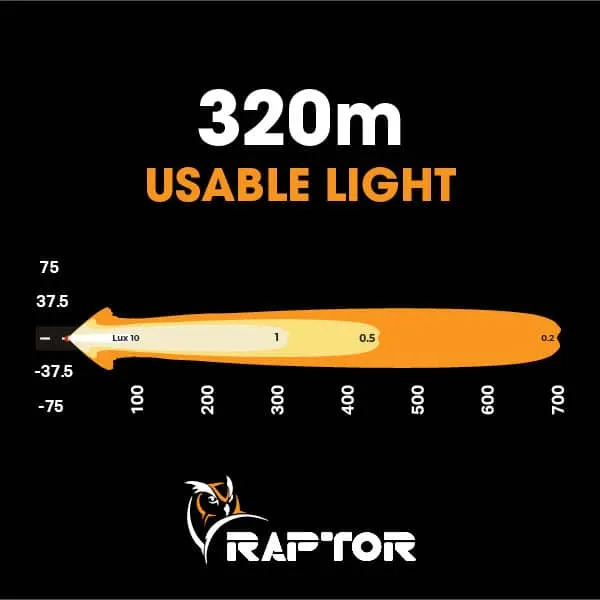

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come complete with stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.
| 30W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 30 Watts |
| Light Source | 6 x 5w LEDs |
| Light Output – Raw | 3,600 Lumens |
| Light Output – Effective | 2,895 Lumens |
| Voltage | 9-36V |
| Current Draw | 2.2A @ 13.5 |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Outer Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 213 x 45 x 73mm |
| Net Weight | 640g |
| Mounting Suitable | Side Mount |
| Beam Type | Spread or Combo |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
| Part Number | |
| Combo, 5700K | RAP030LBv2 |
| Spread, 5700K | RAP030LBSv2 |
| Combo, 4000K | RAP030LB4v2 |
| Spread, 4000K | RAP030LB4Sv2 |
